Vörunr.
3105251

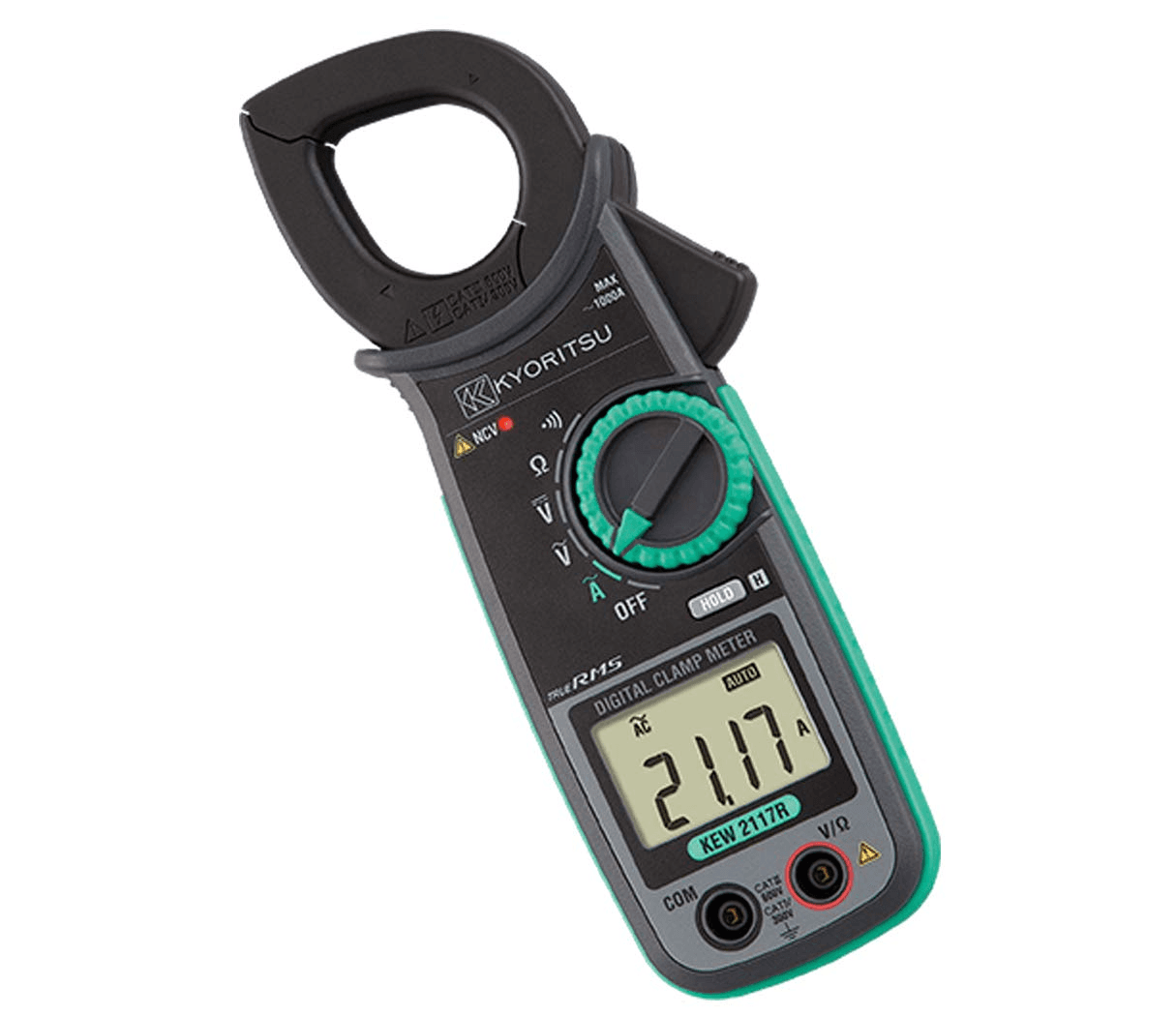

AMPERTÖNG DIG.RMS AC 1000A : MODEL 2117R

Æskilegt sölumagn: 1

Reykjavík: 5 Akureyri: 0
Vörunr: 3105251 Flokkar: , , Vörumerki:
AMPERTÖNG DIGITAL RMS AC 1000A

„True RMS“ AC ampertöng fyrir allt að 1000A. Töngin er með dropalaga  kjafti sem
gerir það auðveldara að komast að vírum t.d. nálægt rofa. Minni er fyrir mæligildi
(Data hold). Töngin er einnig með viðnáms- og spennu- mælingu og fylgja henni prufupinnar.
NCV Spennuaðvörun

Taska fylgir.

Mesti gildleiki vírs : Ø33mm
AC straumur : 60,00/600,0/1000A Sjálvirk skipting ( Auto ranging)
AC spenna : 60/600V
Viðnám : 600 kΩ
Stærð (lxbxh) : 204x81x36mm
Rafhlaða : 2stk. AAA
AC A 60.00/600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 – 65Hz]
±2.0%rdg±5dgt [40 – 1kHz]
AC V 60.00/600.0V (Auto-ranging)
±1.0%rdg±2dgt [45 – 65Hz] (600V)
±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
DC V 60.00/600.0V (Auto-ranging)
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)
Ω 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging)
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer 600Ω(Buzzer sounds below 90Ω)
Conductor size Ø33mm max.
Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power source R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time Approx.170 hours
(When R3 is used)(NCV_LED:off)
(Auto power save : approx. 10 minutes)
Dimensions 204(L) × 81(W) × 36(D)mm
Weight 220g Approx. (including batteries)
Included Accessories 7066A (Test leads)
9079 (Carrying case), R03 (AAA) × 2,
Instruction Manual



MODEL 2117R
